| Item Name | Sanitary Stainless Steel Union - DIN 11851 Coupling |
| Standards | DIN11851 |
| Sizes | DN10 - DN200 |
| Material | SS304 / SS316L |
| Seal | Silicone / EPDM / Viton / NBR / PTFE |
| Connection Type(s) | Weld End / Thread End / Blind End / Hose Connector |
| Operation Type(s) | × |
| Handles | × |
| Surface Finishing | Ra ≤ 0.8μm |
| Working Temperature | Up to 140°C |
| Pressure Rating | DN10 – DN40 max. 40 bars @ 20°C DN50 – DN100 max. 25 bars @ 20°C DN125 – DN150 max. 16 bars @ 20°C DN200 max. 10 bars |
| Application Scopes | Dairy / Food / Beverage / Pharmacy / Cosmetic / Chemical |
| Marking | Laser Marking |
.png)

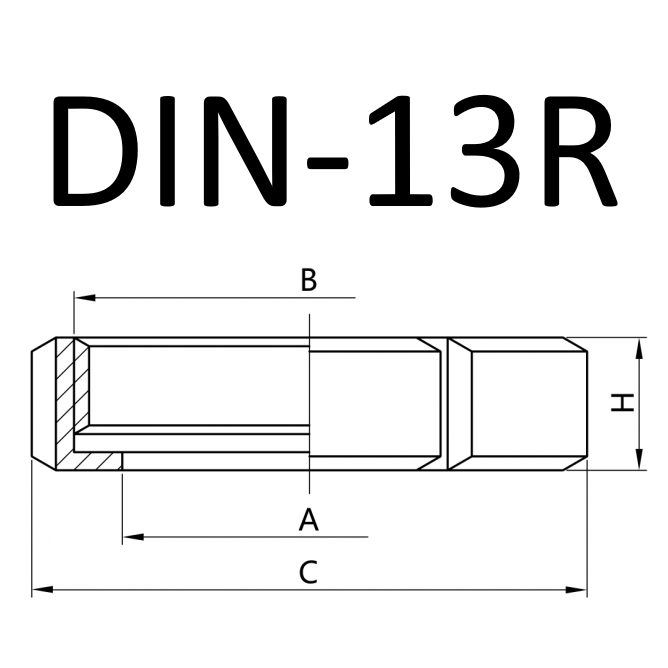

| DIN-13R DN |
ØA | B | ØC | H | SLOTS |
|---|---|---|---|---|---|
| 10 | 19 | RD 28×1/8 | 38 | 18 | 4 |
| 15 | 25 | RD 34×1/8 | 44 | 18 | 4 |
| 20 | 31 | RD 44×1/6 | 54 | 20 | 4 |
| 25 | 36 | RD 52×1/6 | 63 | 21 | 4 |
| 32 | 42 | RD 58×1/6 | 70 | 21 | 4 |
| 40 | 49 | RD 65×1/6 | 78 | 21 | 4 |
| 50 | 62 | RD 78×1/6 | 92 | 22 | 4 |
| 60 | 70 | RD 85×1/6 | 99 | 22 | 4 |
| 65 | 80 | RD 95×1/6 | 112 | 25 | 4 / 6 |
| 75 | 88 | RD 104×1/6 | 119 | 25 | 4 / 6 |
| 80 | 94 | RD 110×1/4 | 127 | 29 | 4 / 6 |
| 90 | 104 | RD 120×1/4 | 138 | 30 | 4 / 6 |
| 100 | 115 | RD 130×1/4 | 148 | 31 | 4 / 6 |
| 125 | 138 | RD 160×1/4 | 178 | 35 | 4 / 6 |
| 150 | 164 | RD 190×1/4 | 210 | 40 | 4 / 6 |
| 200 | 214 | RD 240×1/4 | 260 | 39 | 4 / 6 |

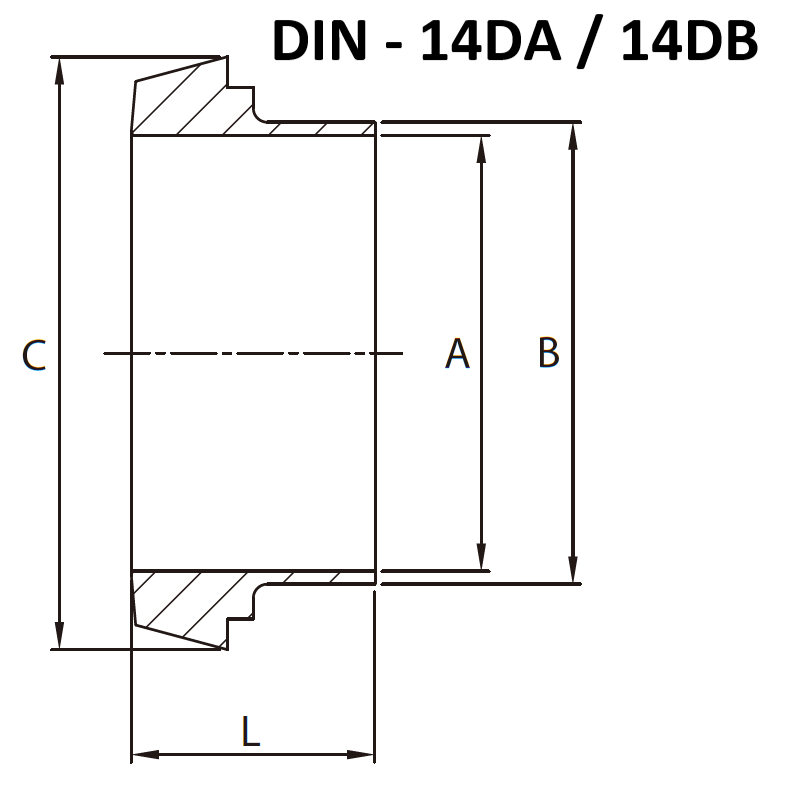

| 14DA / 14DB DN |
DA ØA |
DA ØB |
DB ØA |
DB ØB |
ØC | L |
|---|---|---|---|---|---|---|
| 10 | 10 | 13 | 9 | 12 | 22.5 | 17 |
| 15 | 16 | 19 | 15 | 18 | 28.5 | 17 |
| 20 | 20 | 23 | 19 | 22 | 36.5 | 18 |
| 25 | 26 | 29 | 25 | 28 | 44 | 22 |
| 32 | 32 | 35 | 31 | 34 | 50 | 25 |
| 40 | 38 | 41 | 37 | 40 | 56 | 26 |
| 50 | 50 | 53 | 49 | 52 | 68.5 | 28 |
| 60 | 57 | 61 | 57 | 61 | 76 | 30 |
| 65 | 66 | 70 | 66 | 70 | 86 | 32 |
| 80 | 81 | 85 | 81 | 85 | 100 | 37 |
| 100 | 100 | 104 | 100 | 104 | 121 | 44 |
| 125 | 125 | 129 | 125 | 129 | 150 | 34 |
| 150 | 150 | 154 | 150 | 154 | 176 | 37 |
| 200 | 200 | 204 | 200 | 204 | 226 | 39 |
| 15DA / 15DB DN |
DA ØA |
DA ØB |
DB ØA |
DB ØB |
C | L |
|---|---|---|---|---|---|---|
| 10 | 10 | 13 | 9 | 12 | RD 28×1/8 | 21 |
| 15 | 16 | 19 | 15 | 18 | RD 34×1/8 | 21 |
| 20 | 20 | 23 | 19 | 22 | RD 44×1/6 | 24 |
| 25 | 26 | 29 | 25 | 28 | RD 52×1/6 | 29 |
| 32 | 32 | 35 | 31 | 34 | RD 58×1/6 | 32 |
| 40 | 38 | 41 | 37 | 40 | RD 65×1/6 | 33 |
| 50 | 50 | 53 | 49 | 52 | RD 78×1/6 | 35 |
| 60 | 57 | 61 | 57 | 61 | RD 85×1/6 | 36 |
| 65 | 66 | 70 | 66 | 70 | RD 95×1/6 | 40 |
| 80 | 81 | 85 | 81 | 85 | RD 110×1/4 | 45 |
| 90 | 89 | 93 | 89 | 93 | RD 120×1/4 | 54 |
| 100 | 100 | 104 | 100 | 104 | RD 130×1/4 | 54 |
| 125 | 125 | 129 | 125 | 129 | RD 160×1/4 | 46 |
| 150 | 150 | 154 | 150 | 154 | RD 190×1/4 | 50 |
| 200 | 200 | 204 | 200 | 204 | RD 240×1/4 | 50 |
