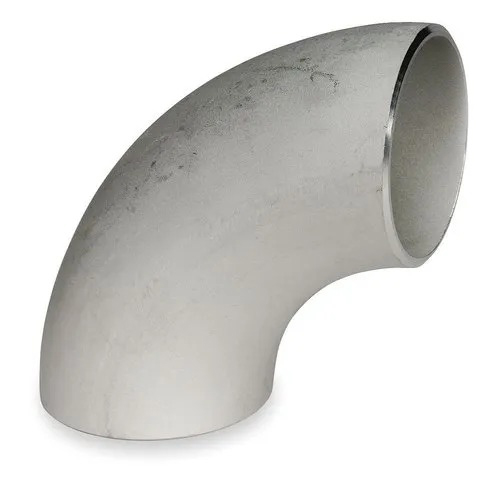

One of the best manufacturers and suppliers of 90-degree radius elbows is Shasan Piping Solution In piping constructions, elbows with a 90-degree radius are utilized to follow a different path or stream. Long and short-radius 90-degree radii differ in that each shift 90-long-radius elbow's components have a longer radius that is utilized to follow an alternate path for the objects in the line across longer locations, where there is opportunity with basic stream On the other hand, short-radius elbows are utilized in confined, short spaces. The overwhelming-grade regular materials are used in the manufacturing of the 90-Degree Long Radius-Deminishing Elbow. Both the Buttweld 90-Degree Long Radius Elbow and the ANSI B16.9 90-Degree Long Radius Elbow The completions can have either socketed welding (SW) or butt welding (BW) machined into them.

90-degree-lr-elbow-manufacturers-exporters-suppliers-stockists

90 Degree LR Elbow Manufacturers, 90 Degree LR Elbow Suppliers, 90 Degree LR Elbow Stockists, 90 Degree LR Elbow Exporters

90 Degree LR Elbow Manufacturers in India, 90 Degree LR Elbow Suppliers in India, 90 Degree LR Elbow Stockists in India, 90 Degree LR Elbow Exporters in India

To improve its qualities, steel alloys, carbon steel, chromium, and aluminum are used in the manufacturing of 90-Degree Long Radius Elbows. The petrochemical, processing plant, and nuclear power sectors are the main markets for our Stainless steel 90-degree-long radius elbows. Before being distributed to the general public and the wider market, the Carbon Steel 90-Deg Long Radius Elbow is subjected to intense testing and is produced using exceptional materials. We offer all of our products at fair prices, which enhances our ability to compete on the global market. In the meantime, to ensure that its applications in the paper and significant construction sectors are enhanced, the 90-Degree LR Elbow made of alloy steel is modified based on the needs and requirements of our clients.

When you get in touch with us, we'll assure you of a prompt delivery of important and valuable items that satisfy your unique needs and requests with unmatched organization and quality. Our goal is to provide our clients with outstanding quality, value, and organization.

90 Degree LR Elbow Manufacturers in Mumbai, 90 Degree LR Elbow Suppliers in Mumbai, 90 Degree LR Elbow Stockists in Mumbai, 90 Degree LR Elbow Exporters in Mumbai

Specification of 90 Degree Elbow

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	90 Degree Elbow
90 Degree Weld Elbow Pipe Fittings size	Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48"
90 Degree Pipe Elbow Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
90 Degree Pipe Elbow Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
90 Degree Reducing Elbow Types	Seamless / ERW / Welded / Fabricated Pipe Fittings
90 Degree Pipe Elbow Type	DN15-DN1200
Connection	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
90 Degree Pipe Elbow Fittings	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process	Push, Press, Forge, Cast, etc.
90 Degree Reducing Elbow Fittings Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for 90 Degree Elbow	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Application	Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc ASME B16.9 Schedule 10 90 Degree Elbow are an economical alternative for lower-pressure applications. ANSI B16.9 Schedule 40 90 Degree Elbow have a thicker wall for higher-pressure applications.

Material of 90 Degree Elbow

Carbon Steel 90 Degree Elbow	ASTM A234 WPB 90 Degree Elbow ASTM A420 WPL6 90 Degree Reducing Elbow WPHY 42 90 Degree Pipe Elbow WPHY 52 90 Degree Pipe Elbow WPHY 60 90 Degree Reducing Elbow WPHY 65 90 Degree Weld Elbow WPHY 70 90 Degree Pipe Elbow
Stainless Steel 90 Degree Elbow	ASTM A403 WP304 90 Degree Reducing Elbow ASTM A403 WP304L 90 Degree Reducing Elbow ASTM A403 WP316 90 Degree Pipe Elbow ASTM A403 WP316L 90 Degree Reducing Elbow ASTM A403 WP317 90 Degree Reducing Elbow ASTM A403 WP317L 90 Degree Pipe Elbow ASTM A403 WP321 90 Degree Reducing Elbow ASTM A403 WP321H 90 Degree Weld Elbow ASTM A403 WP347 90 Degree Elbow ASTM A403 WP347H 90 Degree Pipe Elbow
Alloy Steel 90 Degree Reducing Elbow	ASTM A234 WP5 90 Degree Weld Elbow ASTM A234 WP9 90 Degree Pipe Elbow ASTM A234 WP11 90 Degree Elbow ASTM A234 WP22 90 Degree Reducing Elbow ASTM A234 WP91 90 Degree Reducing Elbow
Inconel 90 Degree Weld Elbow	Inconel 600 90 Degree Pipe Elbow Inconel 601 90 Degree Reducing Elbow Inconel 625 90 Degree Pipe Elbow Inconel 718 90 Degree Pipe Elbow Inconel x750 90 Degree Elbow
Copper 90 Degree Pipe Elbow	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel 90 Degree Pipe Elbow	Copper Nickel 90/10 (C70600 ) 90 Degree Reducing Elbow, Cupro Nickel 70/30 (C71500) 90 Degree Elbow, UNS C71640 90 Degree Pipe Elbow
Brass 90 Degree Pipe Elbow	3602 / 2604 / H59 / H62 / etc.
Hastelloy 90 Degree Reducing Elbow	Hastelloy C276 (UNS N10276) 90 Degree Elbow, C22 (UNS N06022) 90 Degree Reducing Elbow, C4 90 Degree Elbow, C2000 90 Degree Weld Elbow, B2 90 Degree Pipe Elbow, B3 90 Degree Elbow, X 90 Degree Pipe Elbow
Monel 90 Degree Reducing Elbow	Monel 400 (UNS No. N04400) 90 Degree Elbow, Monel 500 (UNS No. N05500) 90 Degree Weld Elbow
Alloy 20 90 Degree Pipe Elbow	Carpenter® 20 Alloy 90 Degree Reducing Elbow, Alloy 20Cb-3 90 Degree Pipe Elbow
Aluminium 90 Degree Weld Elbow	5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel 90 Degree Pipe Elbow	Nickel 200 90 Degree Elbow, Nickel 201 90 Degree Pipe Elbow
Duplex 90 Degree Reducing Elbow	S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex 90 Degree Elbow	S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy 90 Degree Pipe Elbow	Incoloy 800 90 Degree Pipe Elbow, Incoloy 800H 90 Degree Elbow, Incoloy 800HT (UNS N08800) 90 Degree Weld Elbow, Incoloy 825 (UNS N08825) 90 Degree Pipe Elbow
254 Smo 90 Degree Reducing Elbow	SMO 254/6Mo 90 Degree Pipe Elbow, UNS S31254 90 Degree Elbow, DIN 1.4547 90 Degree Weld Elbow
Nimonic 90 Degree Reducing Elbow	Nimonic 75 90 Degree Elbow, Nimonic 80A 90 Degree Elbow, Nimonic 90 90 Degree Pipe Elbow
Other 90 Degree Pipe Elbow material	Tin bronze 90 Degree Weld Elbow, Alumunum bronze 90 Degree Reducing Elbow, Lead bronze 90 Degree Reducing Elbow
Titanium 90 Degree Pipe Elbow	ASTM B381 Titanium Gr. 1 90 Degree Reducing Elbow ASTM B381 Titanium Gr. 2 90 Degree Reducing Elbow ASTM B381 Titanium Gr. 4 90 Degree Weld Elbow ASTM B381 Titanium Gr. 5 90 Degree Elbow ASTM B381 Titanium Gr. 7 90 Degree Pipe Elbow

Dimensions of 90 Degree Pipe Elbow

LONG RADIUS ELBOWS (R = 1,5 ND) ANSI B 16.9 dimensions
inches	ND	mm	Center to center	Radius	Center to end	Back to face
D			O	A	B	K
1/2	15	21,34	76,20	38,10	15,87	47,62
3/4	20	26,67	57,15	28,57	11,11	42,86
1	25	33,40	76,20	38,10	22,22	55,56
1 1/4	32	42,16	95,25	47,60	25,40	69,85
1 1/2	40	48,26	114,30	57,15	28,57	82,55
2	50	60,32	152,40	76,20	34,92	106,40
2 1/2	65	73,02	190,50	95,25	44,45	131,80
3	80	88,90	228,60	114,30	50,80	158,75
3 1/2	90	101,60	266,70	133,35	57,15	184,15
4	100	114,30	304,80	152,40	63,50	209,55
5	125	141,30	381,00	190,50	79,38	261,90
6	150	168,27	457,20	228,60	95,25	312,70
8	200	219,07	609,60	304,80	127,00	414,30
10	250	273,05	762,00	381,00	158,75	517,50
12	300	323,85	914,40	457,20	190,50	619,10
14	350	355,60	1066,80	533,40	222,25	711,20
16	400	406,40	1219,20	609,60	254,00	812,80
18	450	457,20	1371,60	685,80	285,74	914,40
20	500	508,00	1524,00	762,00	317,50	1016,00
22	550	558,80	1676,40	838,20	342,90	1117,60
24	600	609,60	1828,80	914,40	381,00	1219,20
28	700	711,20	2133,60	1066,80	441,90	1422,40
Dimensions in mm.
