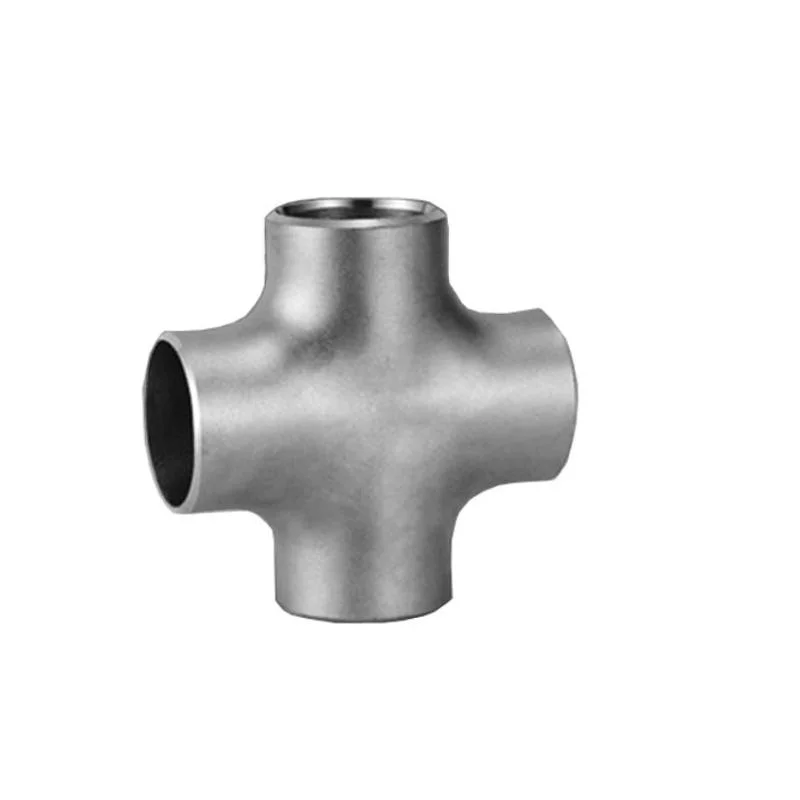

Shasan Piping Solution ASME B16.9 Cross is other than known as four-way pipe fitting. A cross has one delta and three outlets (or the contrary course around). A Stainless Steel pipe cross could be such a line fitting that be utilized inside where four channels get together. The line cross might have one channel and three outlets, or three sounds and one outlet. The broadness of the power source and delta can be something basically the same and can excessively be creating. That is to state, straight cross and reducing cross are both availabe.
We are stacking distFlangesuter of Cross Line Fittings, B16.9 Cross, Buttweld Sidelong Cross and Carbon Steel Butt Weld Equivalent Cross at obviously irrelevant exertion contemplating sensible specialist hours in India and the whole wellspring of staggering SS Equivalent Cross, most ideal situation, cost open in Mumbai, India. Call us to purchase Equivalent Cross Fitting at the best cost in India, request the most recent expense plan of Buttweld Sidelong Cross counting Carbon Steel Butt Weld Equivalent Cross, ANSI B16.9 Line Cross Fittings and ASME B16.9 Crosses.
Shasan Piping Solution, has faith in fundamental part relationship with our clients from one side of the world to the other, Required Quality in reasonable expense of Stainless Steel Equivalent Cross are everlastingly our significant need. We are known as authority in ASME B16.9 Cross,70% of our clients are associated with us for their standard necessities of Ansi B16.9 Line Cross Fittings, Chinese suppliers in like way guarantees about Asme B16.9 Equivalent Cross from us bcz. We have the specialization and 35 years of obligation to make Buttweld Sidelong Cross.
Planned to other than give free reproachful of ASME B16.9 Equivalent Cross,Shasan Piping Solution is having our Vendor and Wholesaler in West Bengal, Delhi, Bhosari, Kolkata, Gujarat, Tamil Nadu, Faridabad, Gurgaon, Maharashtra, Jaipur, Khopoli, Rajasthan, Vadodara, Ludhiana, Indore, Kolhapur, Haryana, Karnataka, Ghaziabad, Karnataka, Chennai, Pune, Nagpur, Punjab, Madhya Pradesh, Aurangabad, Uttar Pradesh, Rajkot, Chhattisgarh, Raipur, Ahmedabad, Bangalore. So expecting that you're paying extraordinary frontal cortex to the best cost of Stainless Steel Equivalent Cross or Carbon Steel Butt Weld Equivalent Cross, Cross Line Fittings close you with the most limited time development or a free starter of B16.9 Cross. Call us or mail to info@shasanpiping.com for the Most progressing and Redesignd cost Rundown of Buttweld Parallel Cross and SS Equivalent Cross.
We are dependable Suppliers Equivalent Cross Fitting to UK, Israel, Iran, France, Turkey, Egypt, USA, Bahrain, Canada, Singapore, Germany, Qatar, Malaysia, Saudi Arabia, Indonesia, Kuwait, Russia, Sweden, UAE, Italy, Sri Lanka, Australia, Thailand, Oman. You'll mail us for ASME B16.9 Crosses to start put secluded down costs. Check once our ANSI B16.9 Line Cross Fittings cost some time starting late buying SS Equivalent Cross from India or China. too mail for our creatures of Stainless Steel Equivalent Cross to check types and sizes with our coordinated stock we will provide you with the essential cost of Buttweld Parallel Cross.
Specifications | Unequal Cross |
---|---|
Reducing Cross Fitting Pipe Fittings size | Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
Grooved Reducing Cross Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
Unequal Cross Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
Reducing Cross Tee Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
Reducing Cross Pipe Fitting Type | DN15-DN1200 |
Connection | Welding |
Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
Grooved Reducing Cross Fittings | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
Manufacturing process | Push, Press, Forge, Cast, etc. |
Reducing Cross Tee Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
Key markets and industries for Reducing Cross |
|
Application |
|
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Nominal Diameter | Outside Diameter | Center to End | |||||
D1 | D2 | ||||||
DN | NPS | Series A | Series B | Series A | Series B | C | M |
15*15 | 1/2*1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
15*10 | 1/2*3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
15*8 | 1/2*1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
20*20 | 3/4*3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
20*15 | 3/4*1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
20*10 | 3/4*3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
25*25 | 1*1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
25*20 | 1*3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
25*15 | 1*1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
32*32 | 1.1/4*1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
32*25 | 1.1/4*1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
32*20 | 1.1/4*3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
32*15 | 1.1/4*1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
40*40 | 1.1/2*1.1/2 | 48.3 | 45 | 48.3 | 45 | 57 | 57 |
40*32 | 1.1/2*1.1/4 | 48.3 | 45 | 42.4 | 38 | 57 | 57 |
40*25 | 1.1/2*1 | 48.3 | 45 | 33.7 | 32 | 57 | 57 |
40*20 | 1.1/2*3/4 | 48.3 | 45 | 26.9 | 25 | 57 | 57 |
40*15 | 1.1/2*1/2 | 48.3 | 45 | 21.3 | 18 | 57 | 57 |
50*50 | 2*2 | 60.3 | 57 | 60.3 | 57 | 64 | 64 |
50*40 | 2*1.1/2 | 60.3 | 57 | 48.3 | 45 | 64 | 60 |
50*32 | 2*1.1/4 | 60.3 | 57 | 42.4 | 38 | 64 | 57 |
50*25 | 2*1 | 60.3 | 57 | 33.7 | 32 | 64 | 51 |
50*20 | 2*3/4 | 60.3 | 57 | 26.9 | 25 | 64 | 44 |
65*65 | 2/1/2*2.1/2 | 73.0 | 76 | 73.0 | 76 | 76 | 76 |
65*50 | 2/1/2*2 | 73.0 | 76 | 60.3 | 57 | 76 | 70 |
65*40 | 2/1/2*1.1/2 | 73.0 | 76 | 48.3 | 45 | 76 | 67 |
65*32 | 2/1/2*1.1/4 | 73.0 | 76 | 42.4 | 38 | 76 | 64 |
65*25 | 2/1/2*1 | 73.0 | 76 | 33.7 | 32 | 76 | 57 |
80*80 | 3*3 | 88.9 | 89 | 88.9 | 89 | 86 | 86 |
80*65 | 3*2.1/2 | 88.9 | 89 | 73.0 | 76 | 86 | 83 |
80*50 | 3*2 | 88.9 | 89 | 60.3 | 57 | 86 | 76 |
80*40 | 3*1.1/2 | 88.9 | 89 | 48.3 | 45 | 86 | 73 |
80*32 | 3*1.1/4 | 88.9 | 89 | 42.4 | 38 | 86 | 70 |
90*90 | 3.1/2*3.1/2 | 101.6 | – | 101.6 | – | 95 | 95 |
90*80 | 3.1/2*3 | 101.6 | – | 88.9 | 89 | 95 | 92 |
90*65 | 3.1/2*2.1/2 | 101.6 | – | 73.0 | 76 | 95 | 89 |
90*50 | 3.1/2*2 | 101.6 | – | 60.3 | 57 | 95 | 83 |
90*40 | 3.1/2*1.1/2 | 101.6 | – | 48.3 | 45 | 95 | 79 |
100*100 | 4*4 | 114.3 | 108 | 114.3 | 108 | 105 | 105 |
100*90 | 4*3.1/2 | 114.3 | 108 | 101.6 | – | 105 | 102 |
100*80 | 4*3 | 114.3 | 108 | 88.9 | 89 | 105 | 98 |
100*65 | 4*2.1/2 | 114.3 | 108 | 73.0 | 76 | 105 | 95 |
100*50 | 4*2 | 114.3 | 108 | 60.3 | 57 | 105 | 89 |
100*40 | 4*1.1/2 | 114.3 | 108 | 48.3 | 45 | 105 | 86 |
125*125 | 5*5 | 141.3 | 133 | 141.3 | 133 | 124 | 124 |
125*100 | 5*4 | 141.3 | 133 | 114.3 | 108 | 124 | 117 |
125*90 | 5*3.1/2 | 141.3 | – | 101.6 | – | 124 | 114 |
125*80 | 5*3 | 141.3 | 133 | 88.9 | 89 | 124 | 111 |
125*65 | 5*2.1.2 | 141.3 | 133 | 73.0 | 76 | 124 | 108 |
125*50 | 5*2 | 141.3 | 133 | 60.3 | 57 | 124 | 105 |
150*150 | 6*6 | 168.3 | 159 | 168.3 | 159 | 143 | 143 |
150*125 | 6*5 | 168.3 | 159 | 141.3 | 133 | 143 | 137 |
150*100 | 6*4 | 168.3 | 159 | 114.3 | 108 | 143 | 130 |
150*90 | 6*3.1/2 | 168.3 | – | 101.6 | – | 143 | 127 |
150*80 | 6*3 | 168.3 | 159 | 88.9 | 89 | 143 | 124 |
150*65 | 6*2.1/2 | 168.3 | 159 | 73.0 | 76 | 143 | 121 |
200*200 | 8*8 | 219.1 | 219 | 219.1 | 219 | 178 | 178 |
200*150 | 8*6 | 219.1 | 219 | 168.3 | 159 | 178 | 168 |
200*125 | 8*5 | 219.1 | 219 | 141.4 | 133 | 178 | 162 |
200*100 | 8*4 | 219.1 | 219 | 114.3 | 108 | 178 | 156 |
200*90 | 8*3.1/2 | 219.1 | – | 101.6 | – | 178 | 152 |
250*250 | 10*10 | 273.0 | 273 | 273.0 | 273 | 216 | 216 |
250*200 | 10*8 | 273.0 | 273 | 219.1 | 219 | 216 | 203 |
250*150 | 10*6 | 273.0 | 273 | 168.3 | 159 | 216 | 194 |
250*125 | 10*5 | 273.0 | 273 | 141.3 | 133 | 216 | 191 |
250*100 | 10*4 | 273.0 | 273 | 114.3 | 108 | 216 | 184 |
300*300 | 12*12 | 323.9 | 325 | 323.9 | 325 | 254 | 254 |
300*250 | 12*10 | 323.9 | 325 | 273.0 | 273 | 254 | 241 |
300*200 | 12*8 | 323.9 | 325 | 219.1 | 219 | 254 | 229 |
300*150 | 12*6 | 323.9 | 325 | 168.3 | 159 | 254 | 219 |
300*125 | 12*5 | 323.9 | 325 | 141.3 | 133 | 254 | 216 |
350*350 | 14*14 | 355.6 | 377 | 355.6 | 377 | 279 | 279 |
350*300 | 14*12 | 355.6 | 377 | 323.9 | 325 | 279 | 270 |
350*250 | 14*10 | 355.6 | 377 | 273.0 | 273 | 279 | 257 |
350*200 | 14*8 | 355.6 | 377 | 219.1 | 219 | 279 | 248 |
350*150 | 14*6 | 355.6 | 377 | 168.3 | 159 | 279 | 238 |
400*400 | 16*16 | 406.4 | 426 | 406.4 | 426 | 305 | 305 |
400*350 | 16*14 | 406.4 | 426 | 355.6 | 377 | 305 | 305 |
400*300 | 16*12 | 406.4 | 426 | 323.9 | 325 | 305 | 295 |
400*250 | 16*10 | 406.4 | 426 | 273.0 | 273 | 305 | 283 |
400*200 | 16*8 | 406.4 | 426 | 219.1 | 219 | 305 | 273 |
400*150 | 16*6 | 406.4 | 426 | 168.3 | 159 | 305 | 264 |
450*450 | 18*18 | 457 | 480 | 457 | 480 | 343 | 343 |
450*400 | 18*16 | 457 | 480 | 406.4 | 426 | 343 | 330 |
450*350 | 18*14 | 457 | 480 | 355.6 | 377 | 343 | 330 |
450*300 | 18*12 | 457 | 480 | 323.9 | 325 | 343 | 321 |
450*250 | 18*10 | 457 | 480 | 273.0 | 273 | 343 | 308 |
450*200 | 18*8 | 457 | 480 | 219.1 | 219 | 343 | 298 |
500*500 | 20*20 | 508 | 530 | 508 | 530 | 381 | 381 |
500*450 | 20*20 | 508 | 530 | 457 | 480 | 381 | 368 |
500*400 | 20*20 | 508 | 530 | 406.4 | 426 | 381 | 356 |
500*350 | 20*20 | 508 | 530 | 355.6 | 377 | 381 | 356 |
500*300 | 20*20 | 508 | 530 | 323.9 | 325 | 381 | 346 |
500*250 | 20*20 | 508 | 530 | 273.0 | 273 | 381 | 333 |
500*200 | 20*20 | 508 | 530 | 219.1 | 219 | 381 | 324 |
