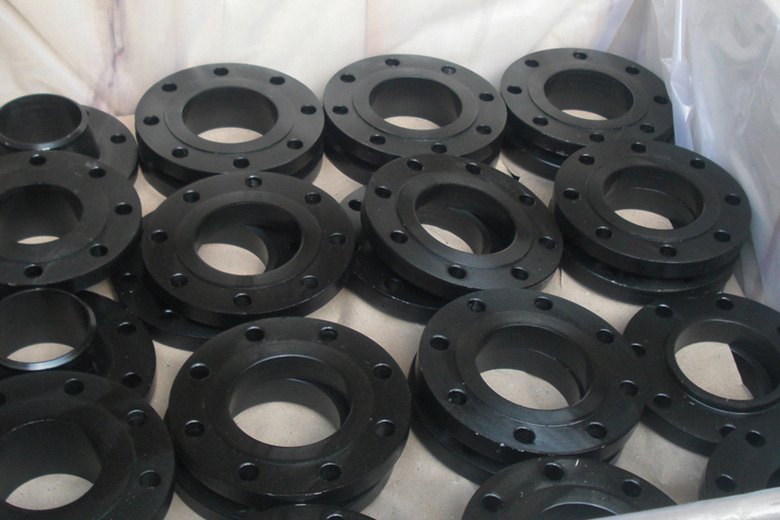

ASTM A694 flanges are available in various grades such as F42, F52, F60, F65, and F70. The difference lies in the chemical composition. ASME SA694 high yield CS F52 slip-on flanges are made of carbon, silicon, manganese, phosphorus, sulfur, molybdenum, nickel, chromium, copper, vanadium, and niobium.
There are different types of flanges and Shasan Piping Solution is a leading supplier of all types of flanges in this specification. ASTM A694 F65 blind flanges are used to terminate pipe connections. A694 specification flanges, fittings, valves, and other components are intended for high pressure transmission service. Therefore, ASTM A694 F70 Carbon Steel ASTM flanges are used in petrochemical, oil and gas, and nuclear energy industrial applications. Different types of flanges are used for different types of connections.
The CS ASTM A694 F52 slip-on flange is made from F52 grade Carbon Steel ASTM and allows the flange to slip on pipe. This allows for precise position selection and the installation of pipes. This flange is mainly used for seamless pipes. Other types are available, such as the ANSI B16.5 F60 weld neck flange, which ranges in nominal inside diameter size from 1/2 inch to 48 inches and has a weld neck. The welded neck provides additional mounting surface and pipe support. Contact us for ASTM A694 flange dimensions, types, products, and prices.
| Specifications | ASTM A694 / ASME SA694 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI, ASME, BS, DIN, EN etc. |
| Grades | F42, F46, F52, F60, F65, F70, A36, A516 Gr. 70,60 |
| Size | 1/2″ to 48″ |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Element | F42 Content, % | F52 Content, % | F60 Content, % | F65 Content, % | F70 Content, % |
| Carbon (C) | 0.13~0.20 | 0.16~0.22 | 0.17~0.23 | 0.17~0.23 | 0.06~0.10 |
| Silicon (Si) | 0.20~0.40 | 0.15~0.40 | 0.15~0.40 | 0.15~0.40 | 0.20~0.40 |
| Manganese (Mn) | 1.20~1.60 | 1.10~1.40 | 1.20~1.50 | 1.30~1.60 | 1.10~1.40 |
| Phosphorous (P) | ≤ 0.030 | ≤ 0.025 | ≤ 0.020 | ≤ 0.025 | ≤ 0.020 |
| Sulfur (S) | ≤ 0.020 | ≤ 0.012 | ≤ 0.012 | ≤ 0.015 | ≤ 0.010 |
| Molybdenum (Mo) | 0.20~0.35 | 0.45~0.60 | 0.45~0.65 | 1.20~1.70 | |
| Nickel (Ni) | ≤ 0.30 | ≤ 0.50 | 0.40~1.00 | ≤ 0.30 | 0.20~0.40 |
| Chromium (Cr) | ≤ 0.30 | ≤ 0.30 | ≤ 0.25 | ≤ 0.30 | ≤ 0.30 |
| Copper (Cu) | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 |
| Vanadium (V) | ≤ 0.050 | 0.02~0.06 | |||
| Niobium (Nb) | 0.025~0.050 | ||||
| Pcm | ≤ 0.25 | ||||
| Carbon Equivalent | ≤ 0.48 | ≤ 0.48 | ≤ 0.48 | ≤ 0.43 | ≤ 0.48 |
